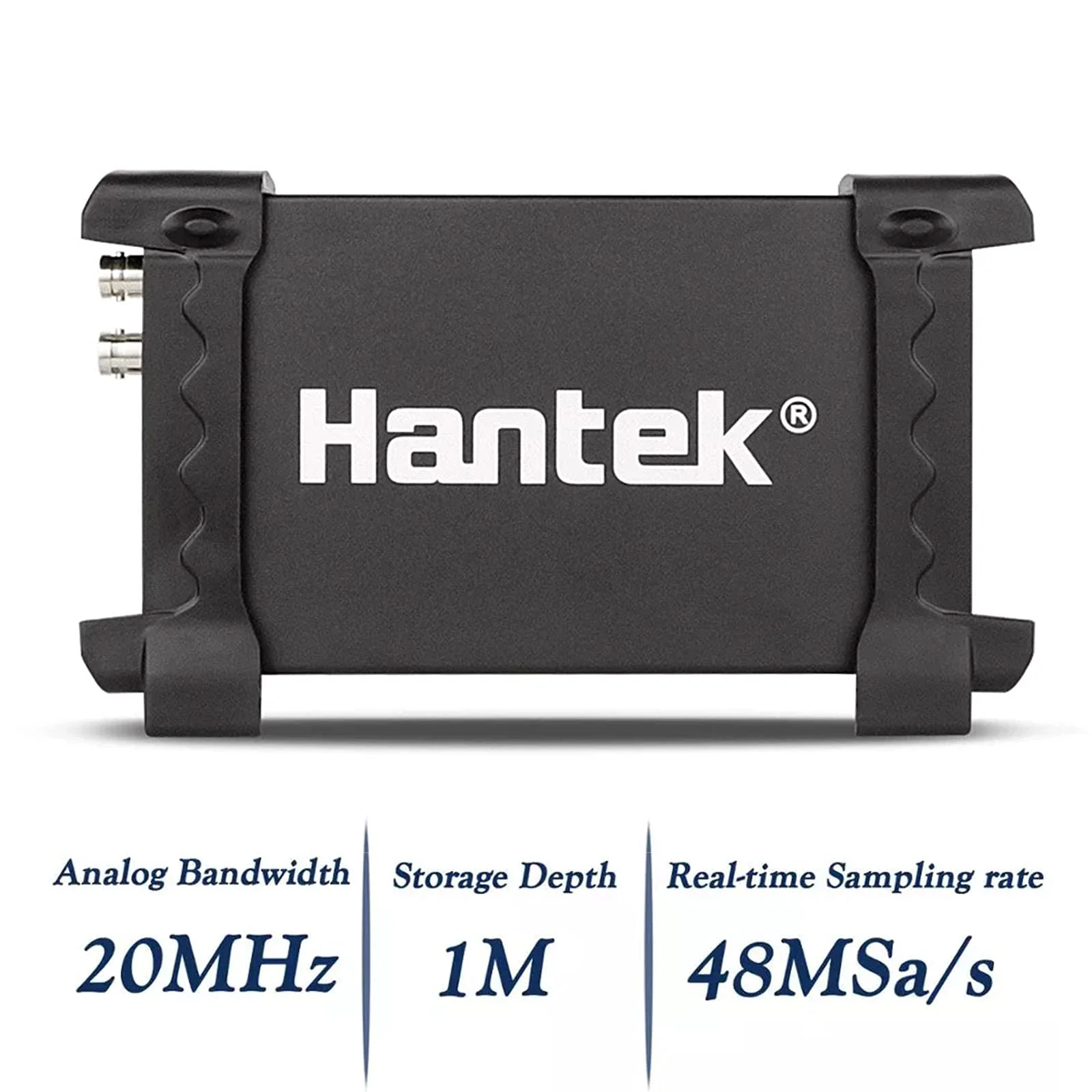

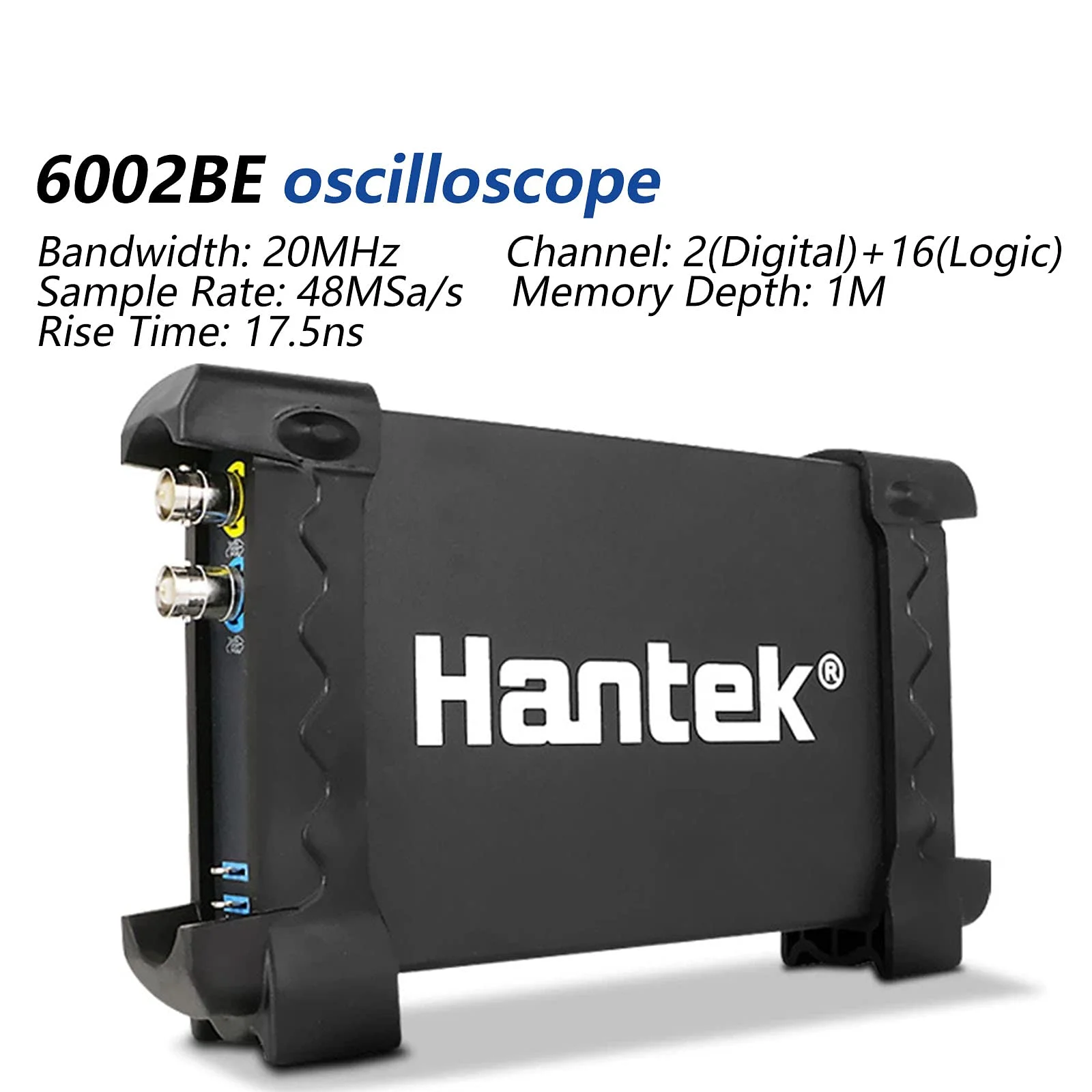

Hantek 6022BE Laptop PC USB Digital Storage Virtual Oscilloscope 2 Channels 20Mhz 48MSa/s Handheld Portable Oscilloscope
Cost-effectiveness, 20MHz bandwidth 2CH scope, 48MSa/s sample rate, with 2pcs probes; Standard USBXI interface, easyly inserts into USBXI housing to make up a combination instrument.
Specification：

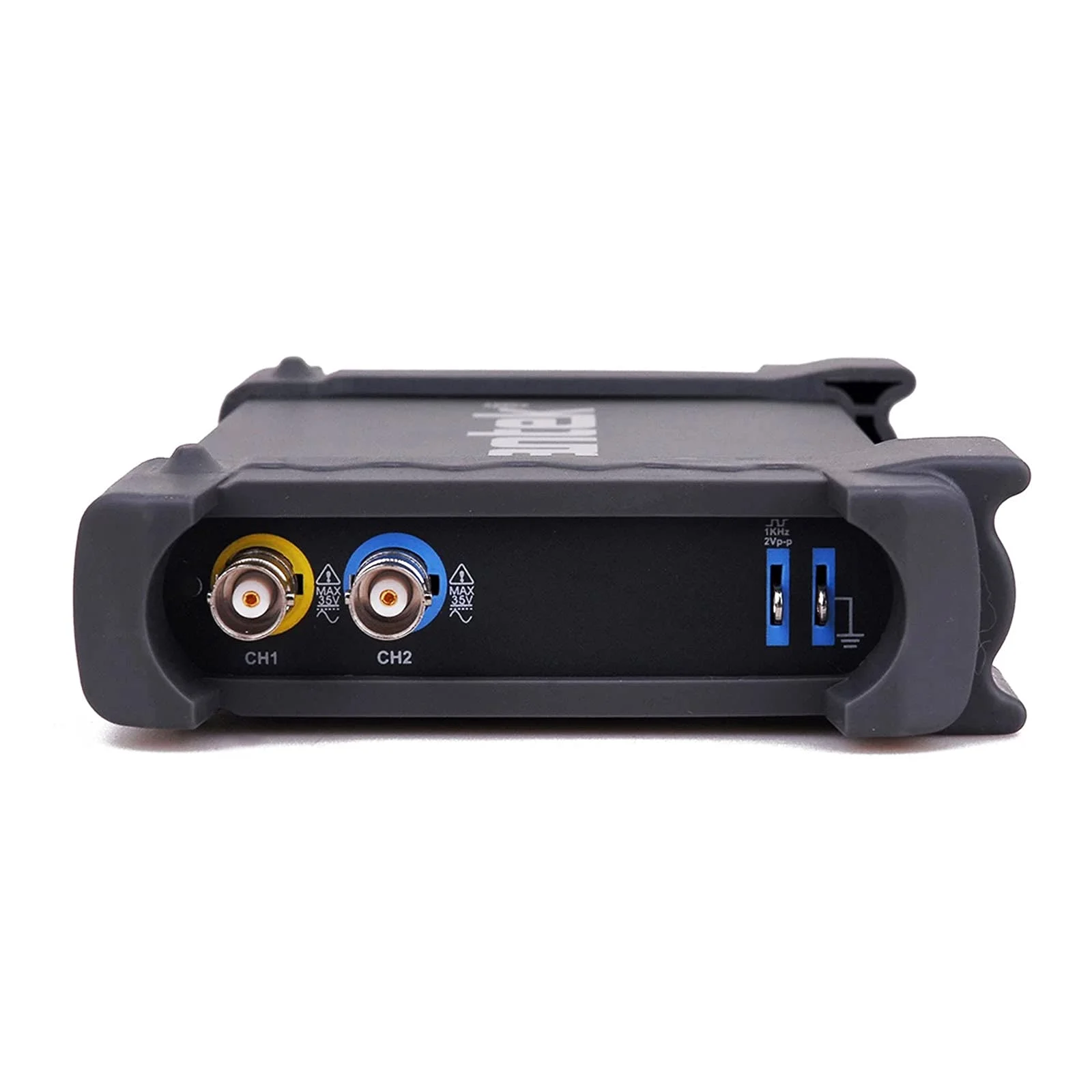

Channel: 2 Channels
Bandwidth: 20MHz Max.
Sample Rate: 48MSa/s
Storage Depth: 1M
Vertical Resolution: 8 Bit
Impedance: 1MΩ 25pF
Coupling: DC
Voltage Range: 20mV-5V, 8Steps
Vertical Accuracy: ±3%
Timebase Range: 1ns-5000s, 39 Steps
Vertical Adjustable: Yes
Input Protection: Diode Clamping
X-Y: Yes
Horizontal Mode: Auto, Normal and Single Trigger Slope: +/-
Trigger Level Adjustable: Yes
Trigger Source: CH1, CH2
Pre Trigger: 0-100%
Sampling Selection: Yes

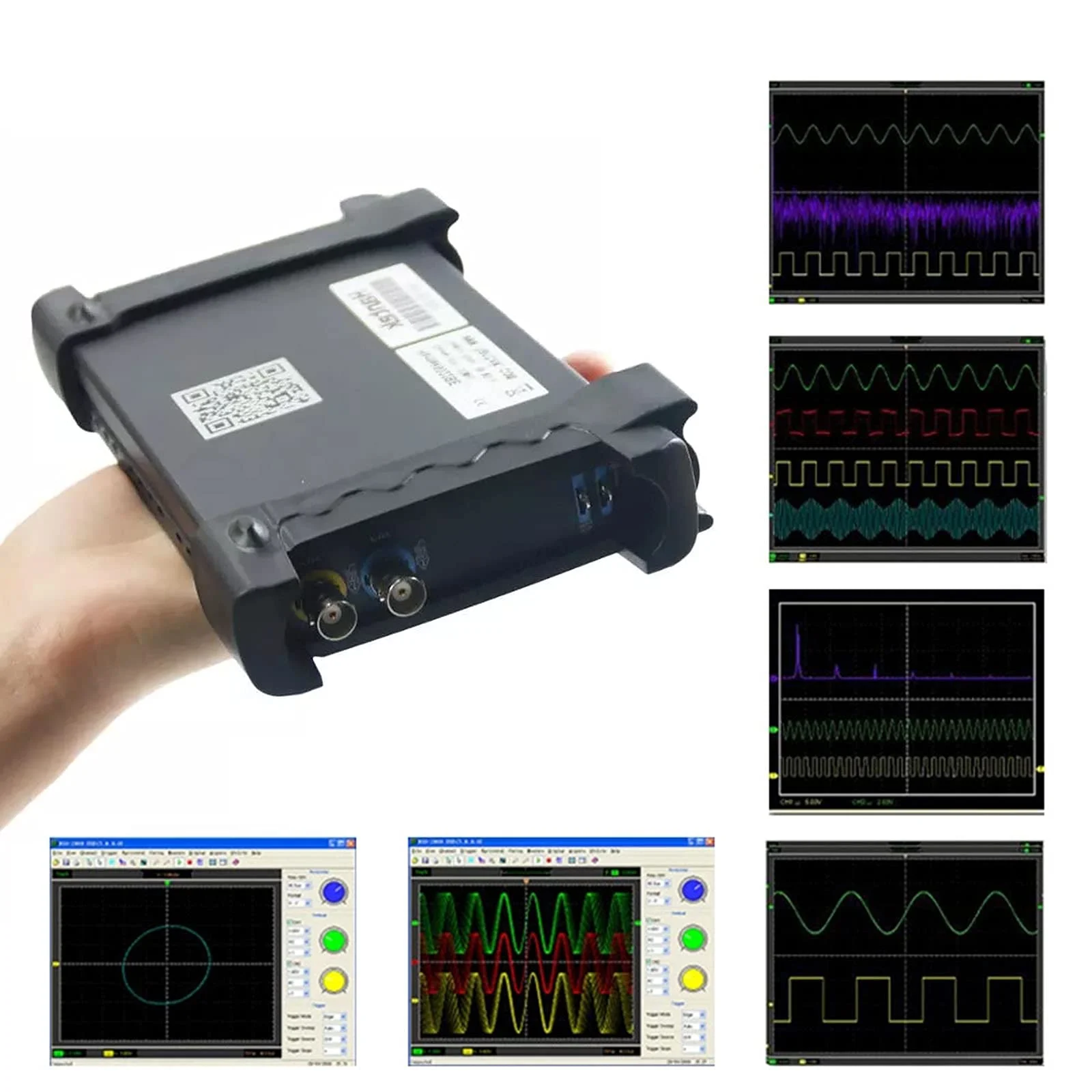

Waveform Display: Port/Line, Intensity Network: Open/Close
Cursor Measurement: Yes
Math: FFT, Invert, Addition, Subtraction, Multiplication, Division
Cursor Display: Frequency, Voltage
Features：

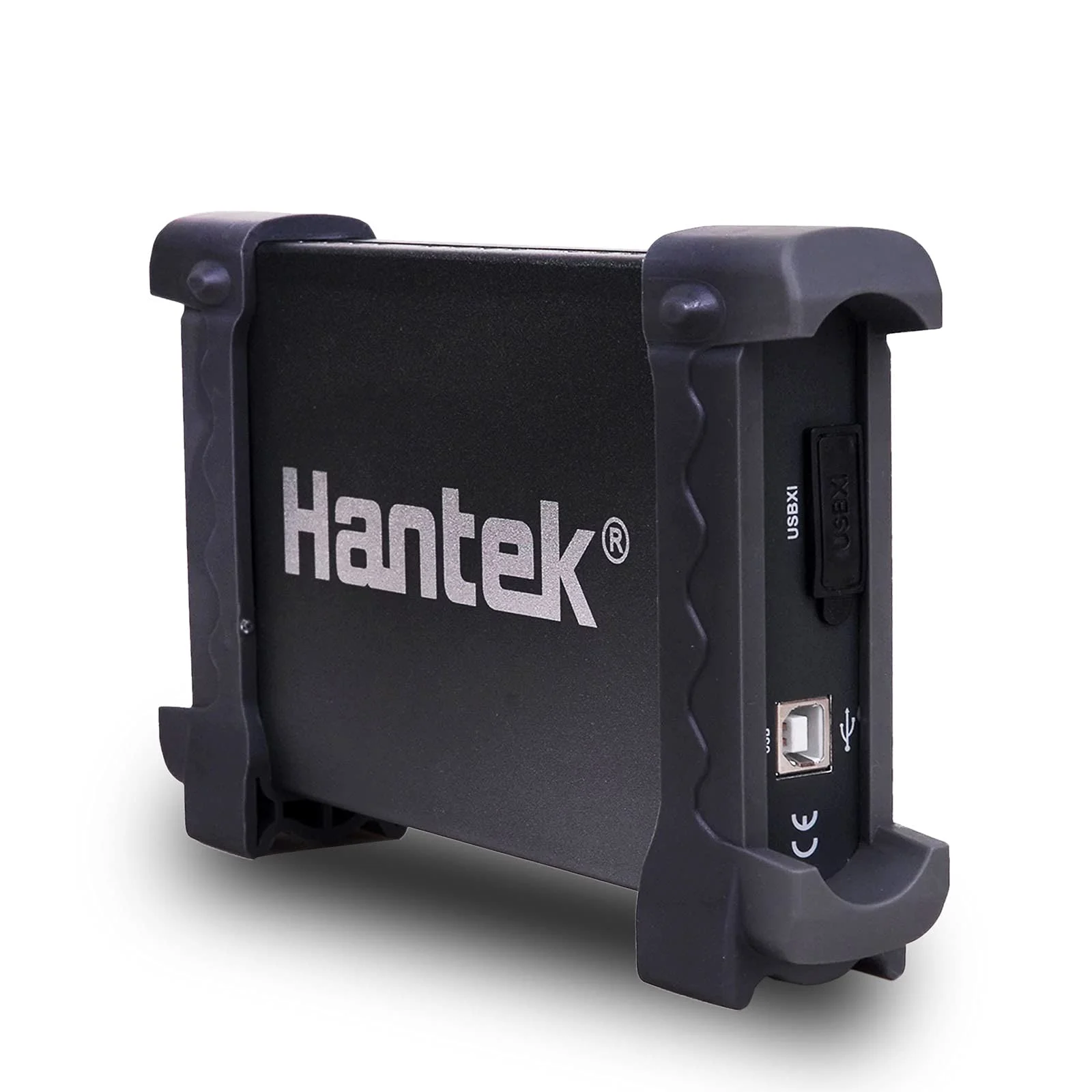

- Standard USBXI interface, easily inserts into USBXI housing to make up a combination instrument
- USB2.0 interface, no external power source required, easy to use.
- Be suitable for notebook computer, product line maintenance, be used easily on business.

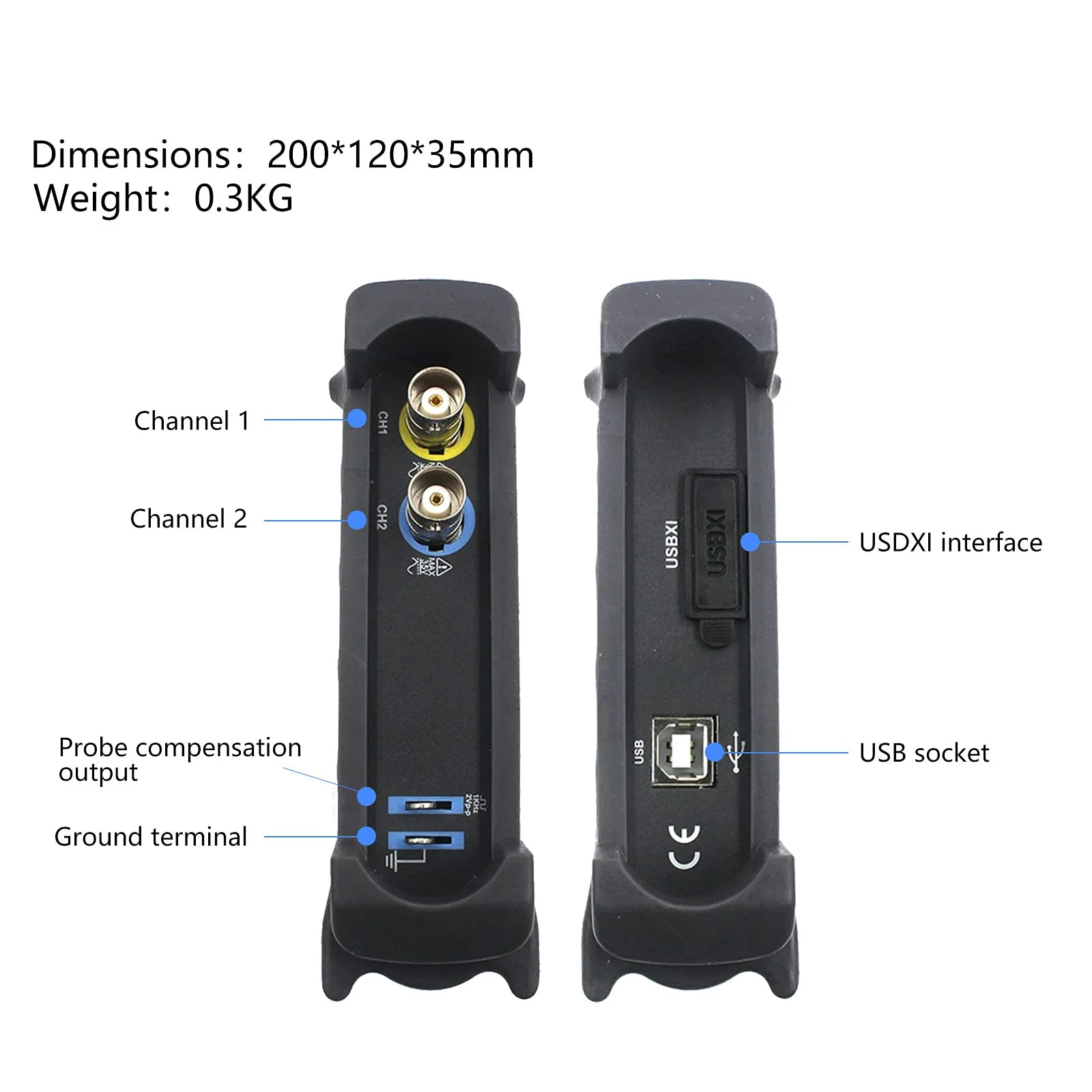

- Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
- High performance, 250MS/s real-time sampling, 20MHz-80MHz bandwidth.
- Operating System: Windows 10, Windows 8, Windows 7, Windows NT, Windows XP, VISTA.
- 23 measurement functions, PASS/FAIL Check, be suitable for technical application.
- Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
