- NEW MODEL – the hantek bench oscilloscope DSO2C10 is the new model launched by Hantek in 2020, aimed to be cost-effective and quality stable;
- MULTI-FUNCTION – the digital storage oscilloscope is with 100mhz bandwithd, dual channel, 8M memory depth,1 GSa/s real-time sample rate;Auto measurement Supports: frequency, period, mean, peak-to-peak, RMS, minimum, mixmum, rising time, falling time, + width, – width, base, top, middle, amplitude, overshoot, preshoot, rising edge phase difference, falling edge phase difference, + duty, – duty, period mean, PRMS, FOVshoot, ROVshoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF;
- PROBE ATTENUATION FACTOR – 1X, 10X, 100X, 1000X;
- NO AWG function for DSO2C10, DSO2C15; If need AWG, please kindly go for DSO2D10 or DSO2D15;

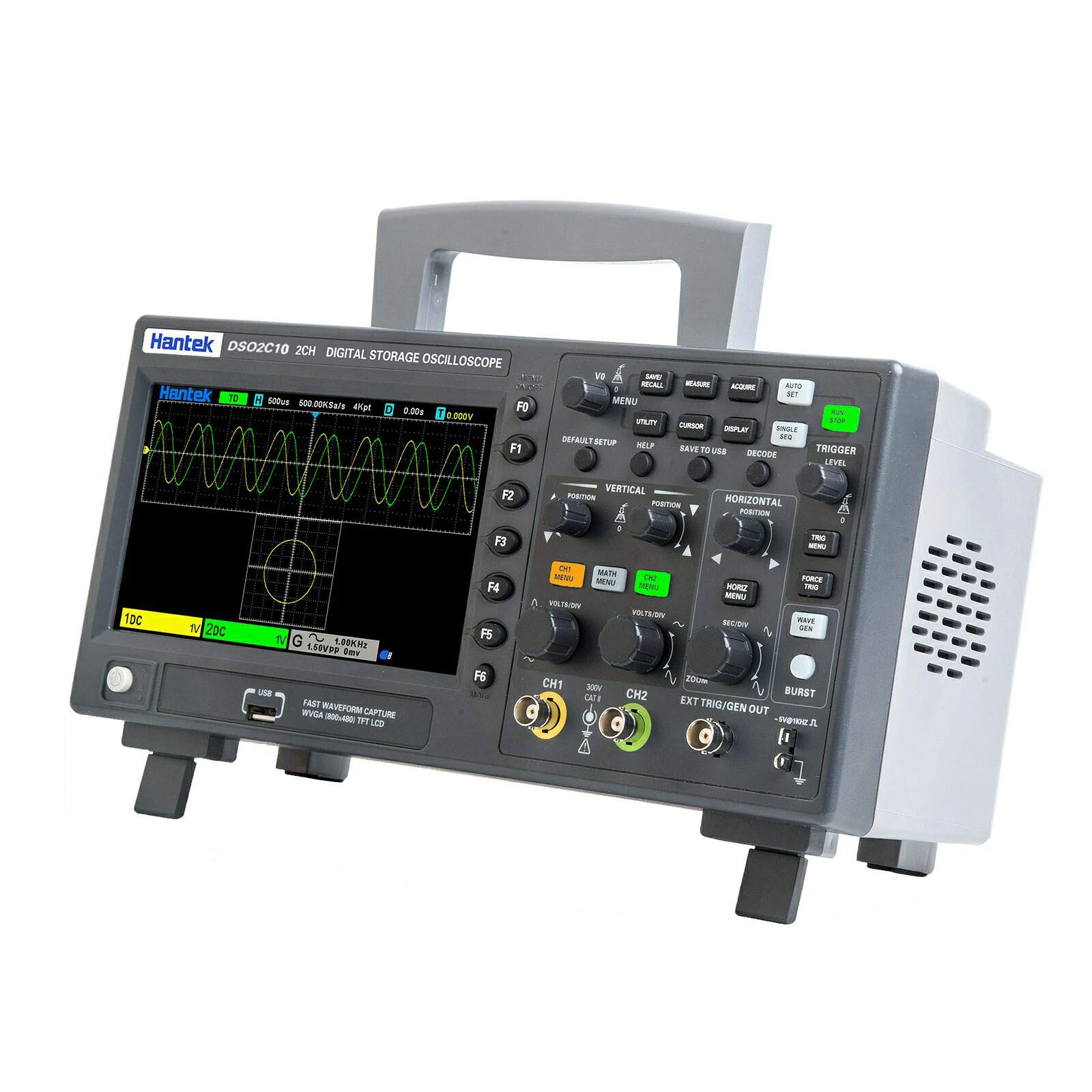

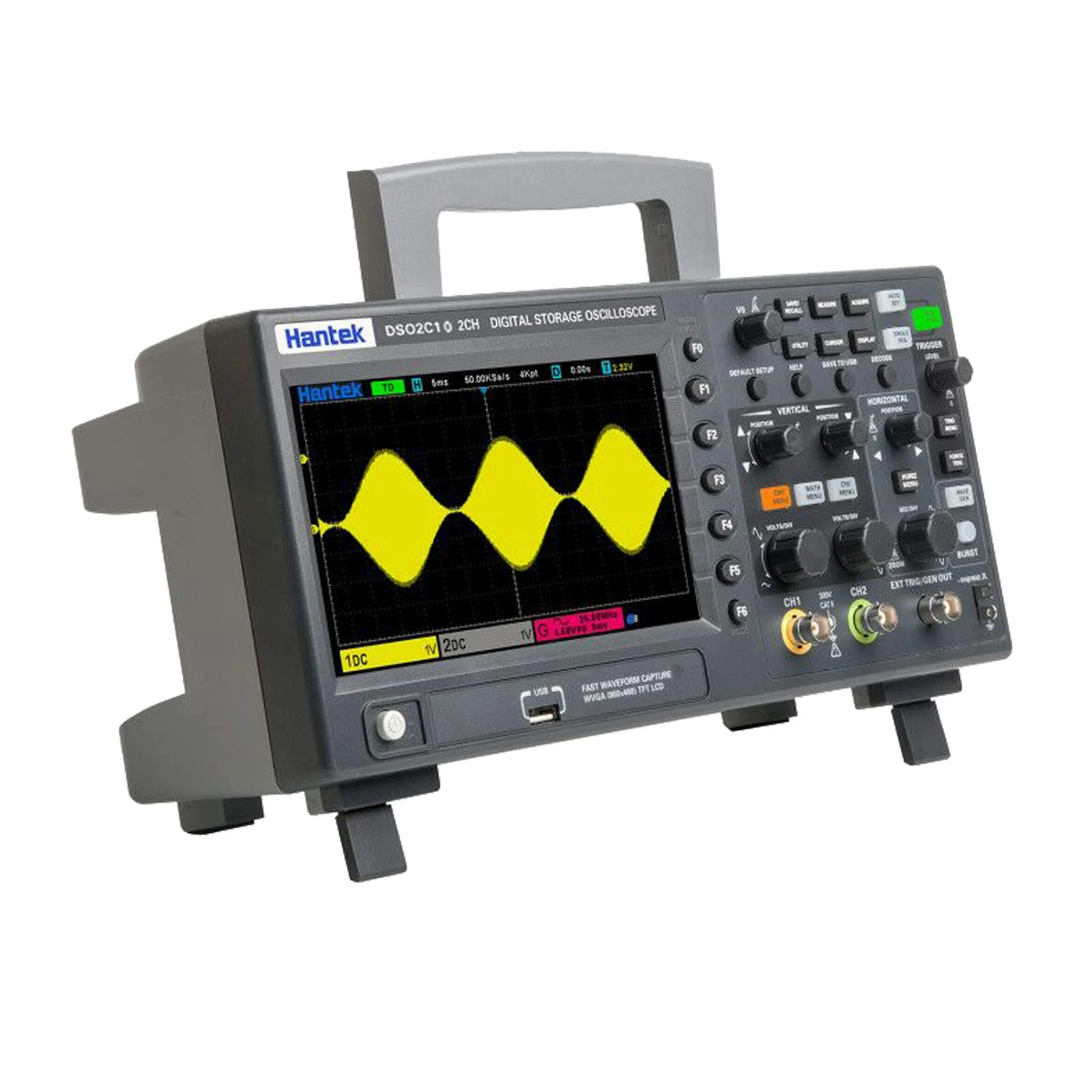

Model Name: DSO2C10
- 100MHz bandwidth;
- 8Mpts memory depth;
- Up to 1 GSa/s real-time sampling rate;
- 2 Input signal channel(CH1,CH2);
- No AWG;
Key Features
Cost-effective And Economical Oscilloscope
- 7-inch TFT LCD screen, 800 * 480 pixels, 16 million display colors (24bit true colors);
- 5-digit digital voltmeter and 6-digit hardware frequency counter functions;
- Setting, waveform, reference waveforms, CSV, pictures and other data formats record function;
- Supports SCPI programming command control;
- Support 32 kinds automatic measurement and statistics functions;
- Supports 14 trigger modes, standard five serial protocol triggering and decoding;
- Color: Black
- Dimension: 318 * 150 * 140mm / 12.5 * 5.9 * 5.5in
- Net Weight: 2900g / 6.4lb
- Interface: USB Host/Device

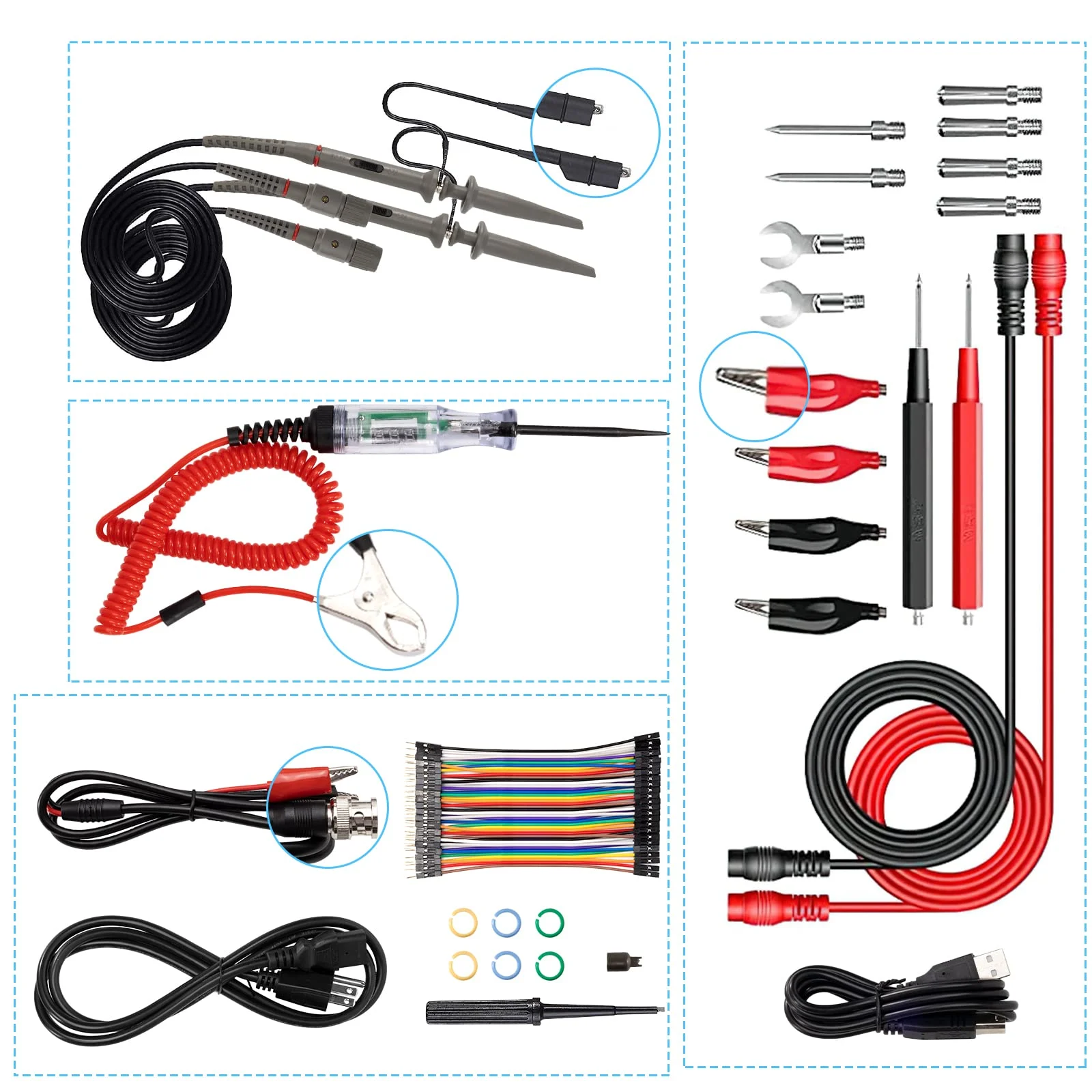

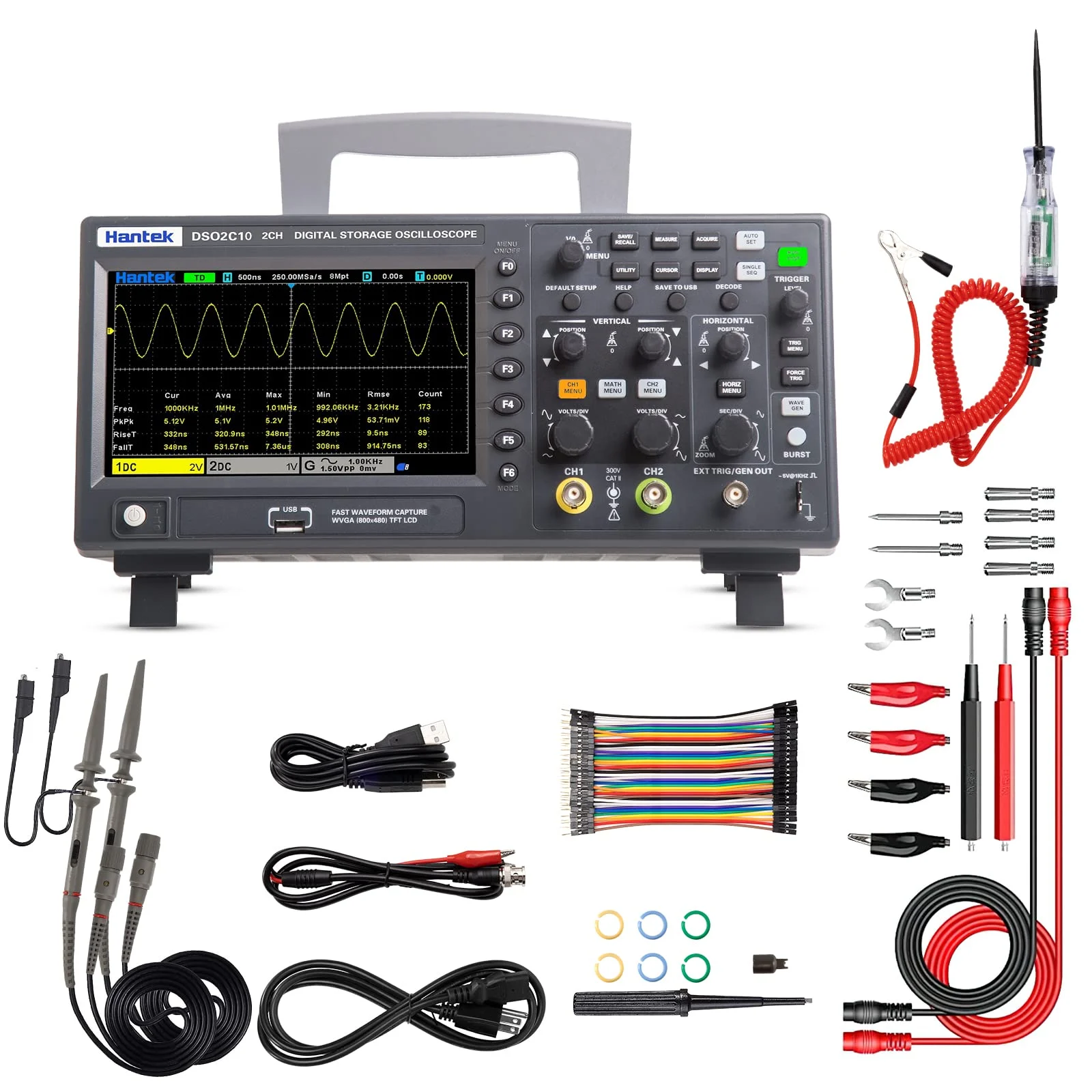

- Package: 1*Oscilloscope; 1*Probe(1.5m);1*power line;1*USB line;2 * Alligator Clip Line;1*pc software CD; 1*user manuel;
- Vertical range 2mV/div ~ 10V/div, Vertical resolution : 8bit
- Trigger: Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Delay, UART, LIN, CAN, SPI, IIC
- Decode and protocol analysis: RS232/UART、I2C、SPI、CAN、LIN
Applications
- Electronic circuit design and debugging
- Electrical circuit function test
- Inspect instantaneous signal
- Industrial control and measuring
- Products quality control
- Education and training
Product Description
The Hantek DSO2000 Series oscilloscope is the latest model from Hantek in 2020, which upgrades from original DSO5000P series, but with better cost. It employs a new generation of technology that provides excellent signal fidelity and performance.
It covers the bandwidths from 100MHz to 150MHz, and provide the real-time up to 1GSa/s. In addition, they have 7 inch color TFT LCD as well as WINDOWS-style interfaces and menus for easy operation.
What’s more, the plenty menu information and the easy-to-operate buttons allow you to gain information as much as possible in measurement; the Multifunctional Knobs and the powerful shortcut keys help you save a lot of time in operation; the Auto Scale function lets you detect sine and square waves automatically.
The Hantek DSO2000 Series includes 4models: DSO2D15, DSO2C15, DSO2C15, DSO2C10;
